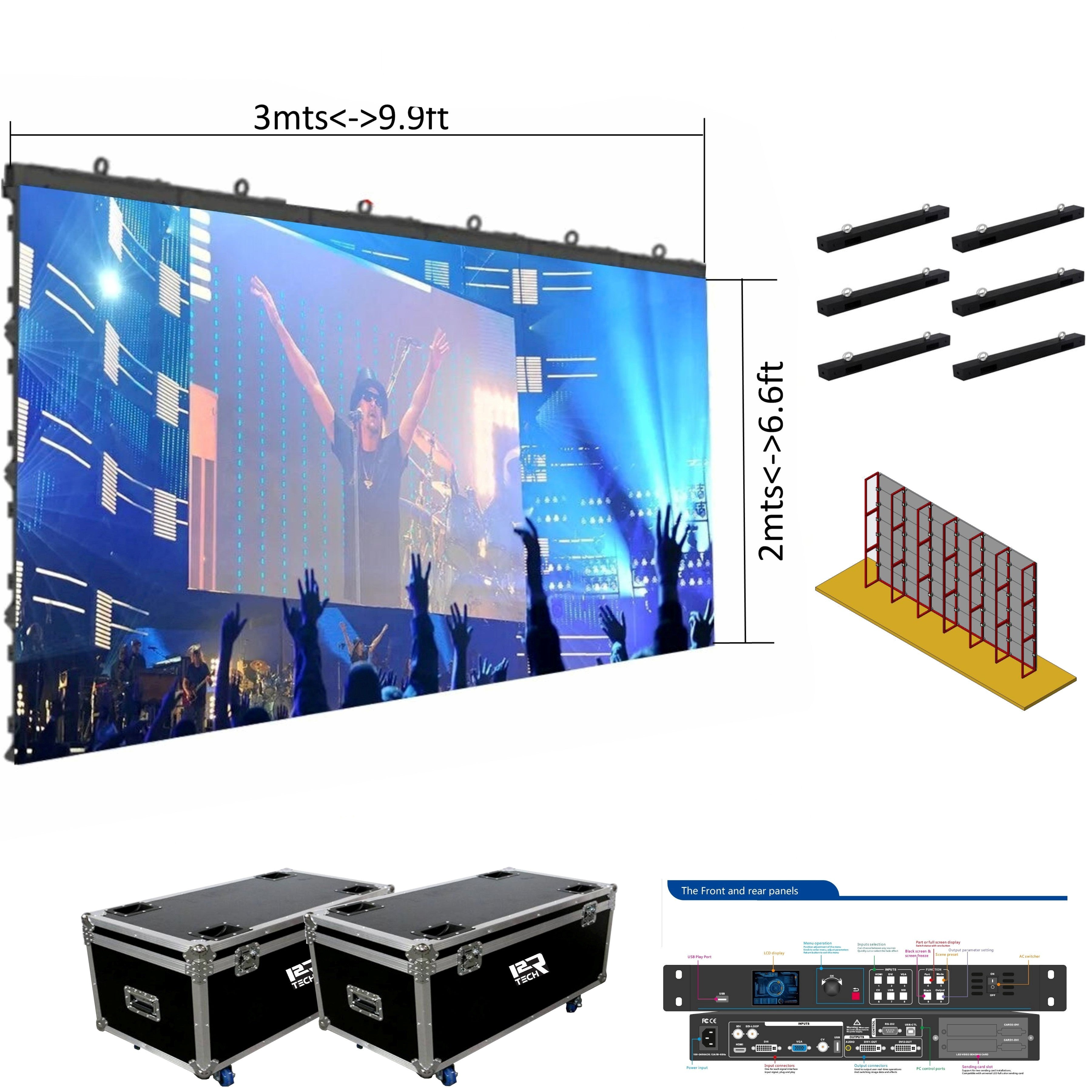

LED Screen Pack, Ultra-HD (P2.976, P3.97), indoor-outdoor 9.9 x 6. 6 Feet (3mts X 2mts) + Processor + Cases + Cables + Mounting (Copy)

These Screens are high definition, down to less than 3mm pixel pitch.

Note: We have a bunch of screens in stock!!

Please contact us for pricing, it changes all the time, and we always give the biggest discount we can.

We put together the perfect Screen kit for you. All 12x panels fit in 2x cases that you can stack on top of each other. They are very easy to transport and don't use a lot of space in the trailer. The aspect ratio is perfect for videos from phones and computers.

We give you everything you need in this kit. Many competitors will give you the equivalent of just10x panels (not 12x) for this price, and they don't include the processor and the mounting options.

Each Panel measures 500mm x 1000mm. The Indoor Panel has a resolution of (168 x 336) pixels each and the Outdoor Panel (128 x 256) pixels each.

The whole indoor screen has an HD resolution of (1008 x 672) pixels!

The whole outdoor screen has a resolution of (768 x 512) pixels.

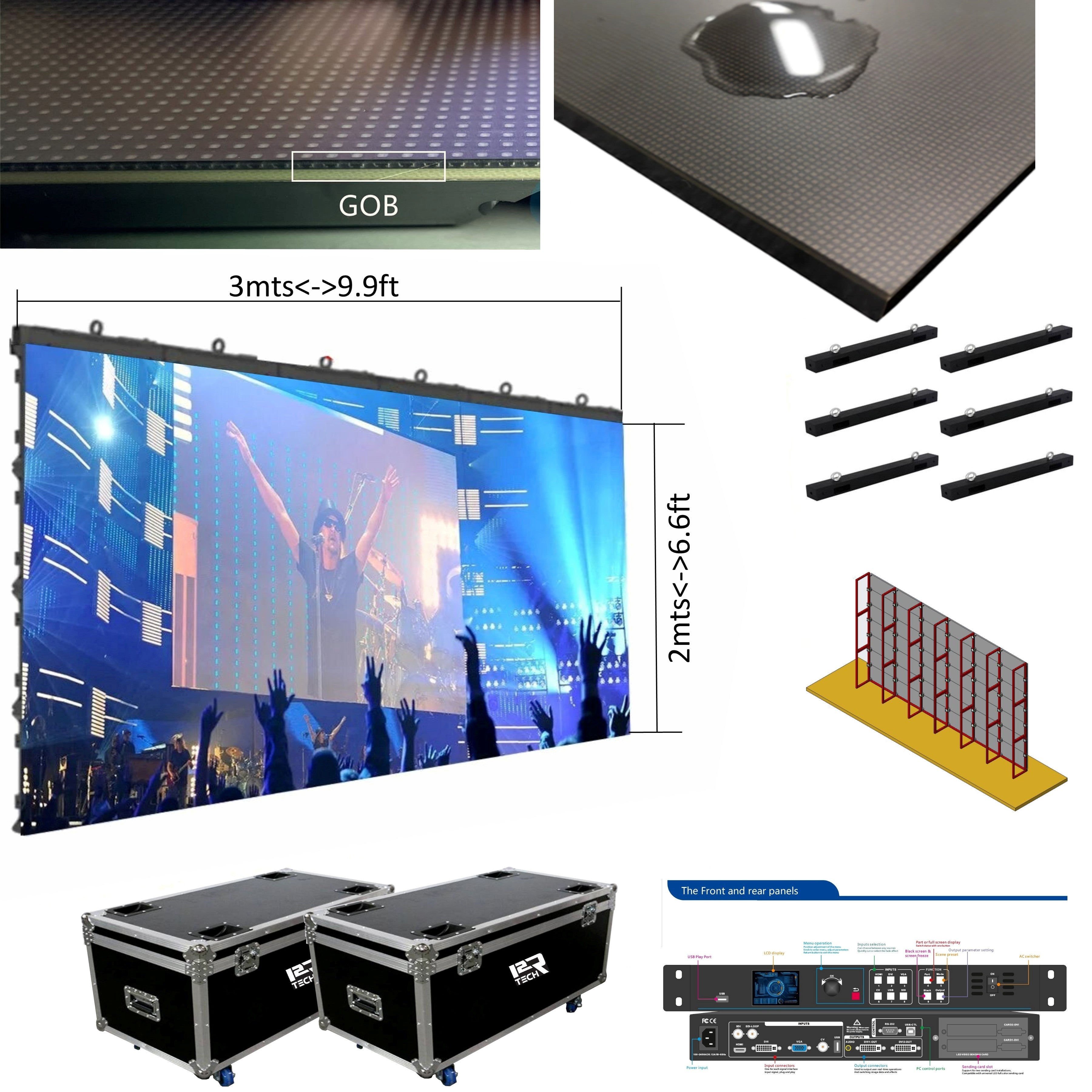

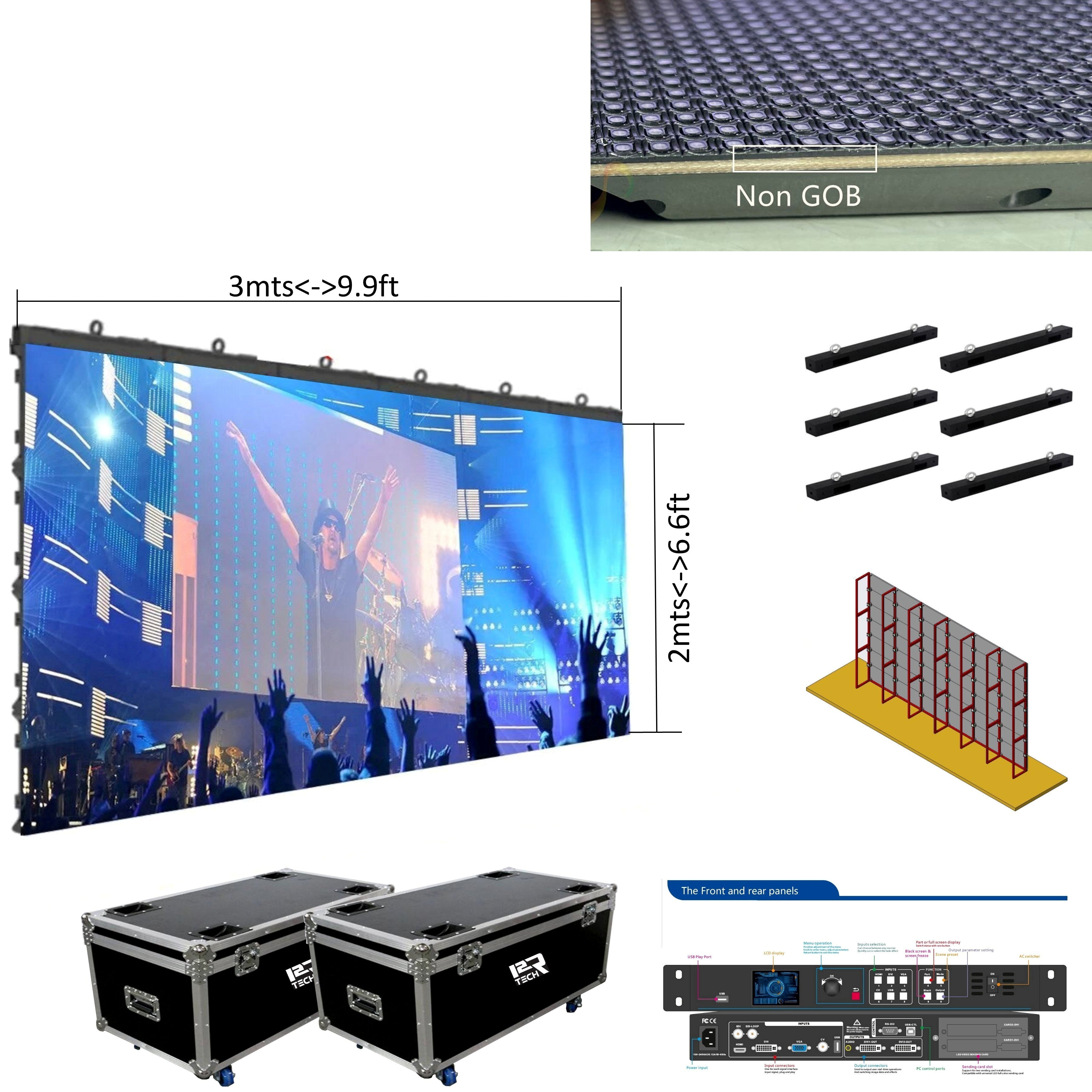

You can choose to add GOB treatment to the LED Modules for the Indoor Screen. GOB stands for Glue-On-Board, and it is a new optical and thermal nano-filling material that covers the PCB board and the LED chips of a conventional LED display. It creates a matte effect on the surface of the LED display, improving its protection (for rental applications) and enhancing its visual performance.

The Outdoor version doesn't require GOB treatment, it already has epoxy protection around each LED pixel.

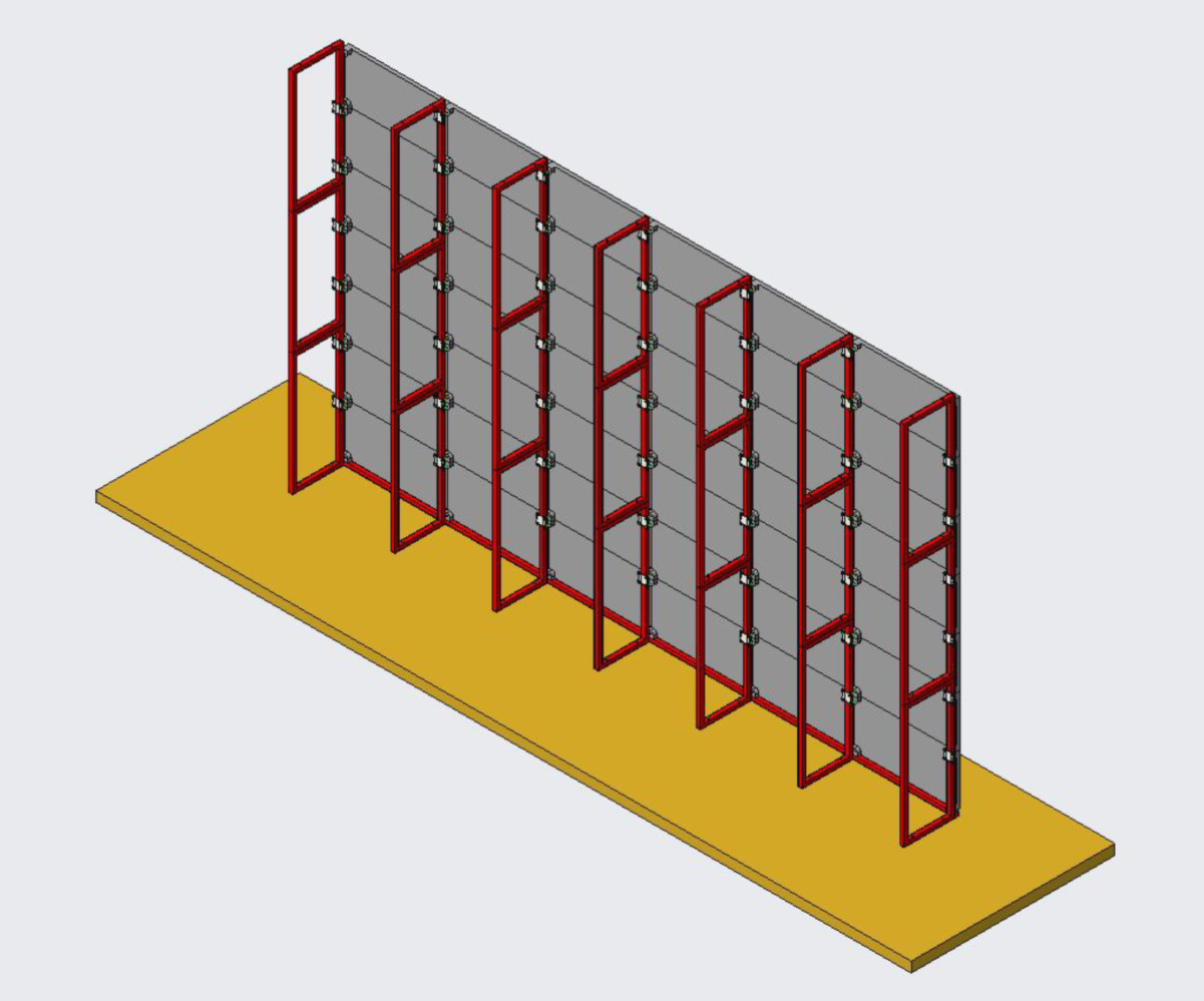

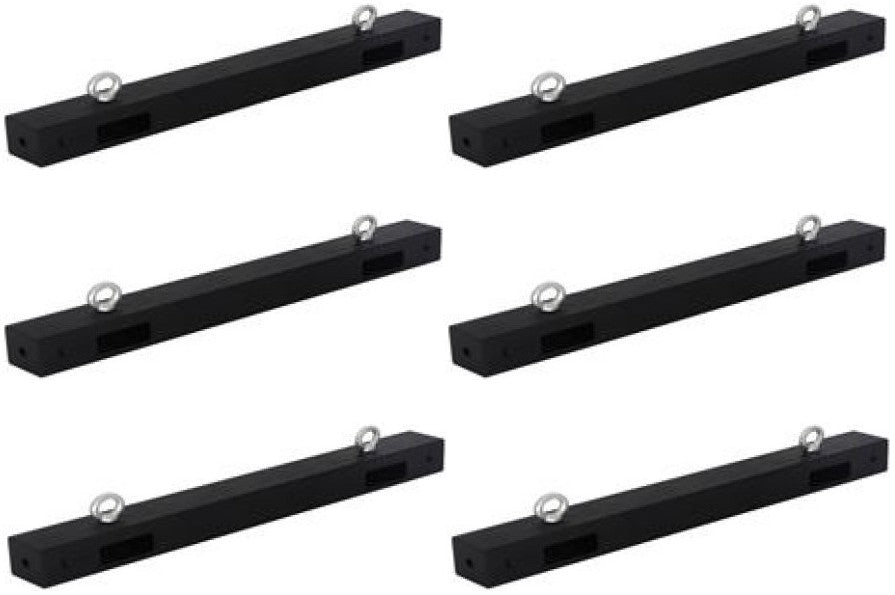

SMD Full Color LED Screens: 12x (P2.976-P397) Ultra-High-Definition Indoor Panels (500mm x 1000mm each) + truss-hanging OR floor-mounting options + Video Processor + 2x wheeled ATA Carrying/Storage cases and all the cables included in the price (contact us for details)

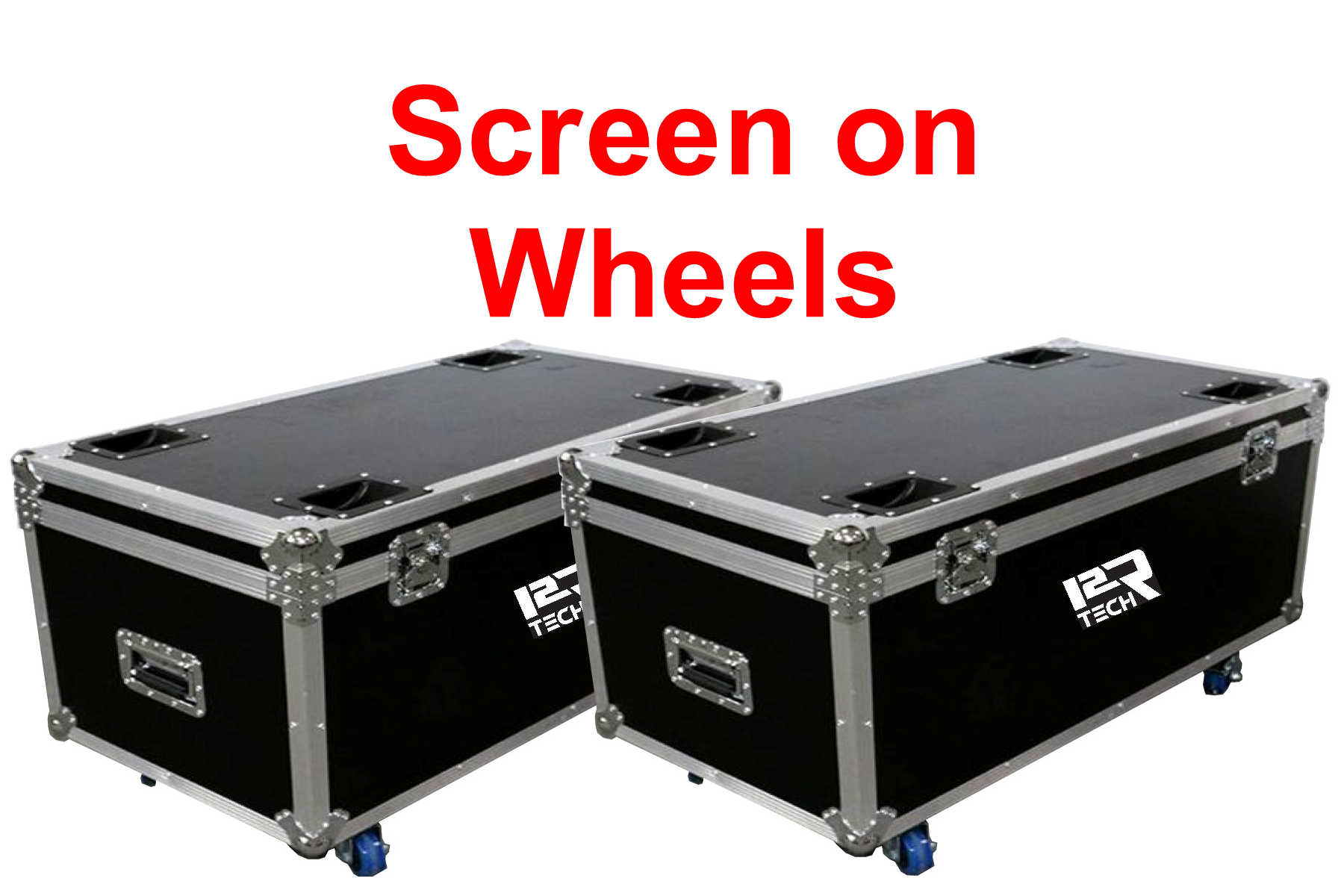

The whole screen fits in 2x wheeled cases, and unlike some of the other manufacturers, our boxes fit through regular doors!

Color LED Panels 1x P2.976 Indoor Panel (500mm x 1000mm) -> 0.5 square meters.

Color LED Panels 1x P3.97 Outdoor Panel (500mm x 1000mm) -> 0.5 square meters.

We ship or hand-deliver; we offer installation and training services. We offer 6 months guarantee, and maintenance services beyond that.

 Screen Technical Parameters:

Led Display Area 6sqm (12 Panels, 500mm x 1000mm each)
Led Indoor Panel Pixels 168px x 336px, whole screen 1008px x 672px (1008p HD)
Led outdoor Panel Pixels 128px x 256px, whole screen 768px 512px.
Ave. Consumption 200 w/㎡
Max. Consumption 800 w/㎡
Brightness 1000-1500cd/㎡
Grey scale 16 bit
View Distance 2.976-200 m
View Angle Horizontal: 160°, Vertical: 160°
Power Supply AC 110V/220V+ -10%
Drive Mode 1/28 Scan Constant Current

Refresh Rate 3840 Hz
Waterproof Front: IP43 Rear: IP43
Tolerance between modules ≤0.1mm
Storage Temperature - 35℃ ～ + 75℃
Working Temperature - 25℃ ～ + 65℃
Display Color 16.7million
MTBF ≥10,000 hours
Life span ≥100,000 hours
Operation Humidity 10% ~ 95%

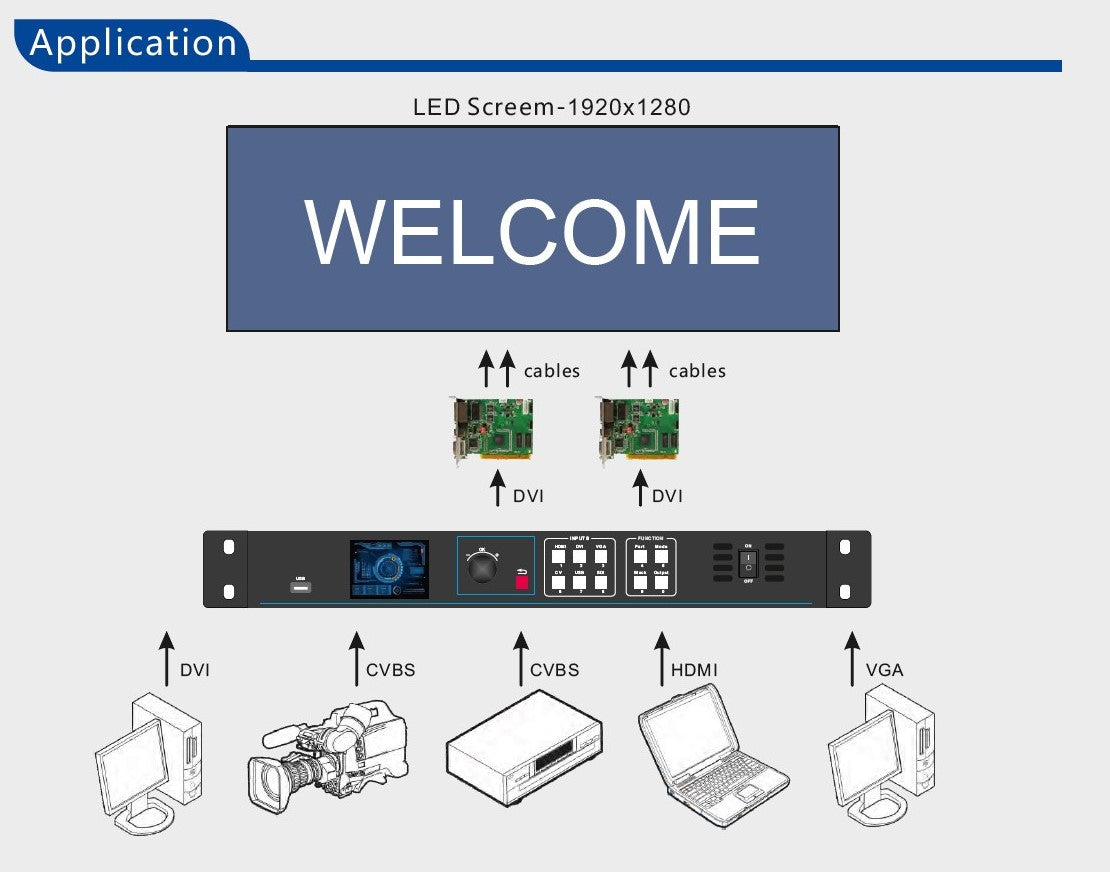

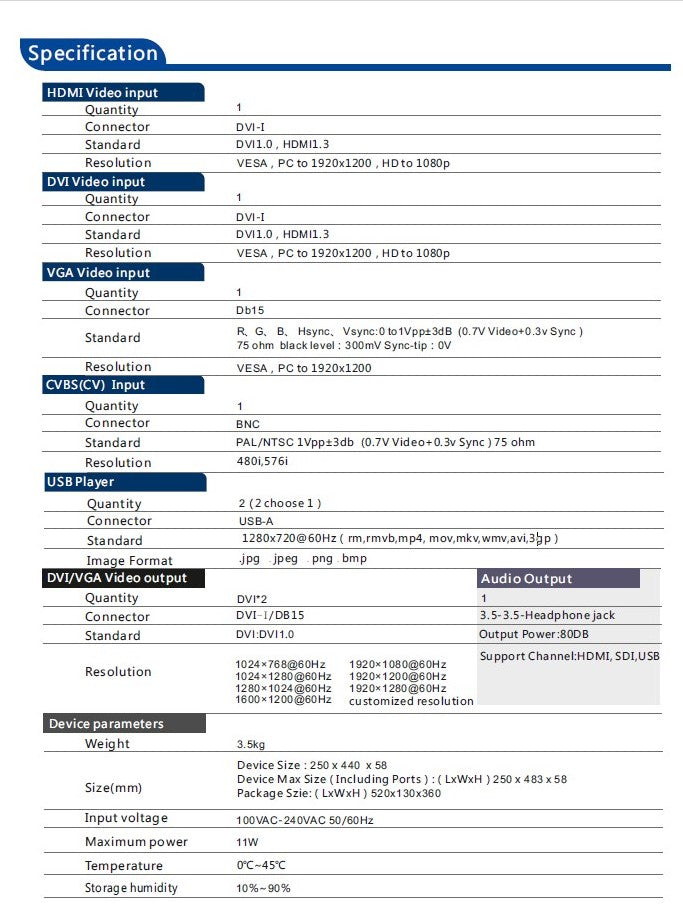

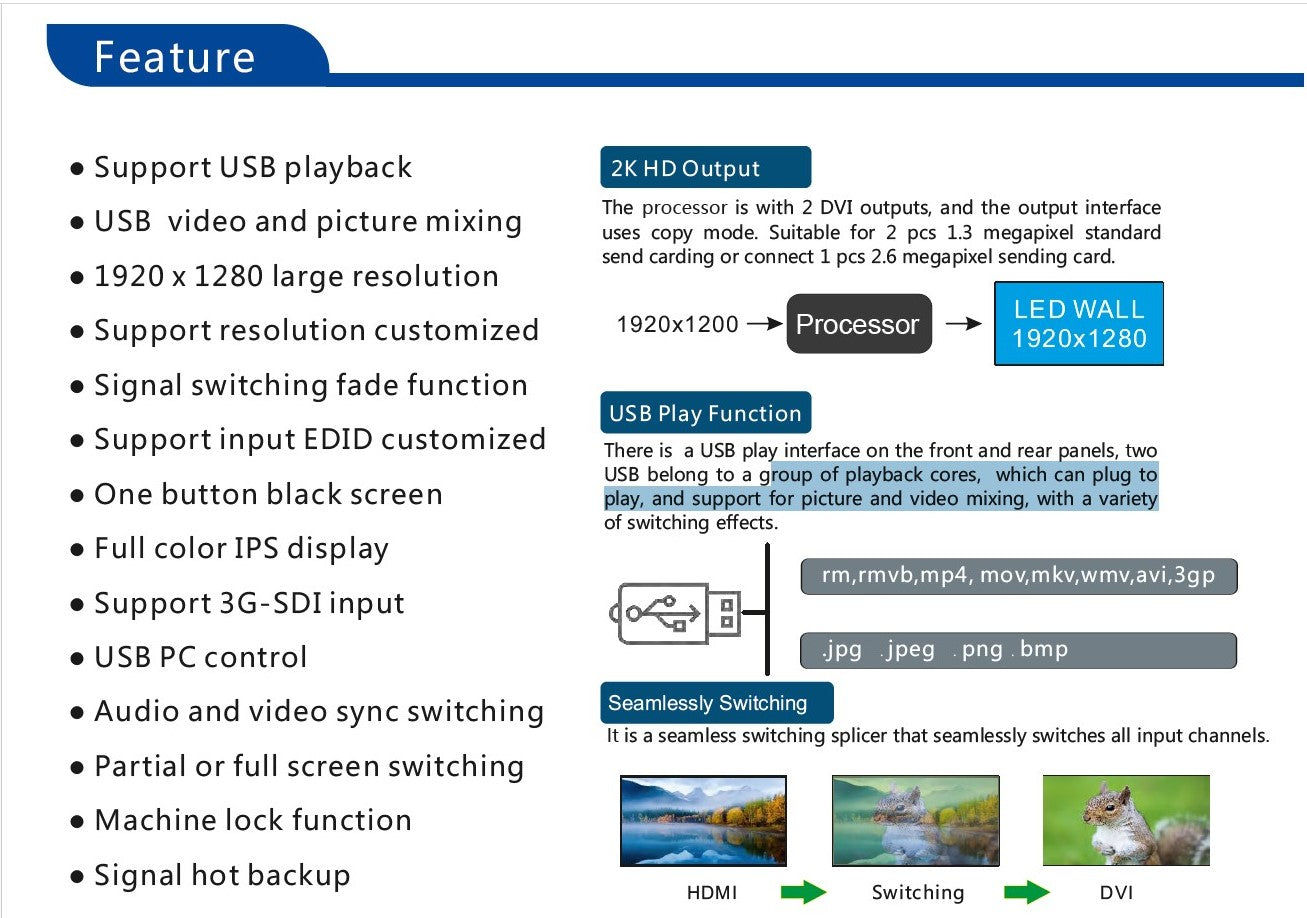

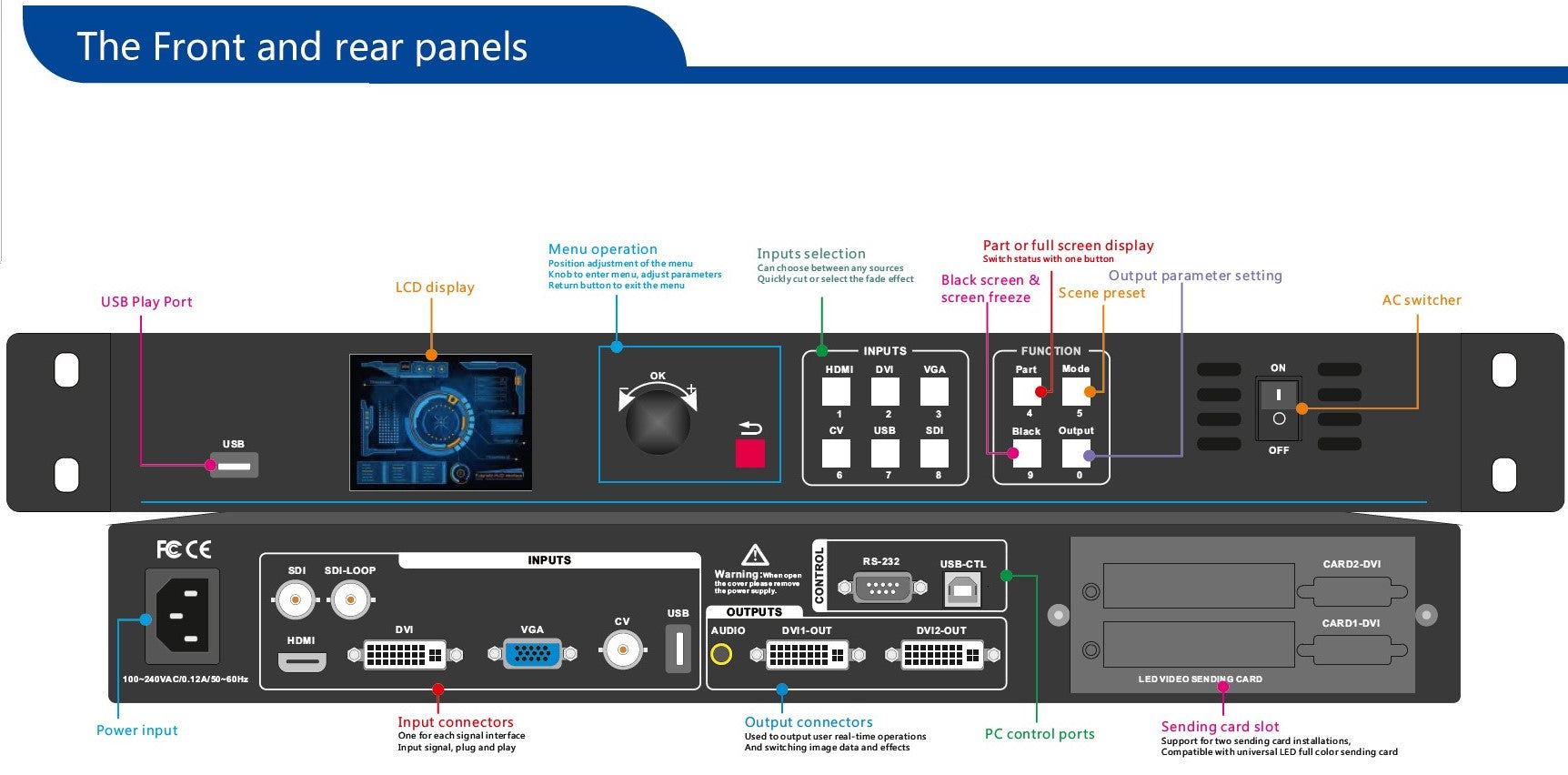

Processor:

Control System Novastar synchronous control input Signal MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/
RMJ/ASF/Composite, etc.
Operation System Microsoft Windows 98, 2000, XP, Vista, Win 7,
Win 8, Win 10.

Software:

Download and install NovaLCT
